PH-200L、PH-200LC非接觸式轉速表 技術指標：

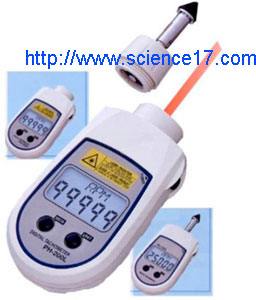

日本新寶SHIMPO PH-200L非接觸式手持激光數字轉速表的性能：
日本新寶SHIMPO PH-200L為日本原裝手持數字轉速表，量程大、精度高、功能齊全、體積小巧，操作方便，是測量轉速的理想儀器。
日本新寶SHIMPO PH-200L非接觸式手持激光數字轉速表的技術參數：
| 型 號 |
PH-200LC |
PH-200L |
| 測量方式 |
接觸式 /非接觸式 |
非接觸式 |
| 測量范圍 |
轉速 |
接觸： 6～25,000 rpm
非接觸： 6～99,999 rpm
|
6.0～99,999 rpm |
| 線速度 |
1.0～3,809 m/sec |
. |
| 長度 |
0.2～99,999m |
| 總轉數 |
0.1～99,999rev |
| 測量精度 |
1～599.9：±1rpm
600～25,000：±0.006%+0.5個字
|
6～599.9：±1rpm
600～99,999：±0.006%+0.5個字
|
| 測量距離 |
50～300mm |
50～300mm |
| 顯示參數 |
最終值、最大值、最小值、 10點平均值 |
最終值、最大值、最小值、 10點平均值 |
| 外形大小 |
115.5×64×31.5mm |
115.5×64×31.5mm |
| 重量 |
160克 |
160克 |
日本新寶SHIMPO PH-200L非接觸式手持激光數字轉速表的英文介紹：
Measuring range:
(floating decimal point) |
Revolution (non-contact): 6 - 99999 min-1
Revolution (contact): 6 - 25000 min-1
Revolution (counter): 1 - 99999 rev
Speed: 1 - 3810 m/min; 36 - 99999 in/min;
3 - 12500 ft/min; 1.0 - 4167.0 yd/min
Length: 0.2 - 99999 m; 0.5 - 99999 ft; 0.01 - 99999 yd |
| Accuracy: |
Revolution: 6 - 599 ±1 min-1 ±1 digit
600 - 25000 min-1 ±2 min-1
25001 - 9999 ±0.01 % of reading ±1 digit
Speed and length: ±0.4% of reading ± 1 digit |
| Measuring units: |
Revolution: min-1 (rpm);
Total rotations (counter): rev
Speed: m/min; ft/min; yd/min; in/min
Length: m; ft; yd |
| Memory: |
14 readings (10 readings MAX, MIN, mean and last) for 5 min after last use |
| Laser, class 2: |
Output<1 mW, wavelength 760 nm,
max. measuring distance 2 m |
| Resolution: |
Length: 0.02362 m/Impuls (with adapter),
revolution: 1 Impuls/revolution (with adapter) |
| Display: |
5 digit LCD 12 mm high |
| Display update: |
1 s |
| Over range indicator: |
‘‘‘‘OVR‘‘‘‘ is flashing in the display |
| Auto power off: |
After 5 min of non-use |
| Battery: |
3 x 1.5 V Type AA, approx. 35 h continuous use |
| Low battery indicator: |
‘‘‘‘LO BAT‘‘‘‘ flashes in the display |
| Temperature range: |
5 - 45 °C |
| Air humidity: |
85 % RH, max. |
| Housing: |
Polyamide, fiber-reinforced |
| Dimensions: |
149 x 64 x 31 mm (LxWxH) |
| Weight, net (gross): |
Approx. 180 g (400 g) |
|
