上海華巖儀器設備有限公司供應YXQ-WY21-600、YXQ-WY22-600臥式圓型壓力蒸汽滅菌器YXQ.WY21.600

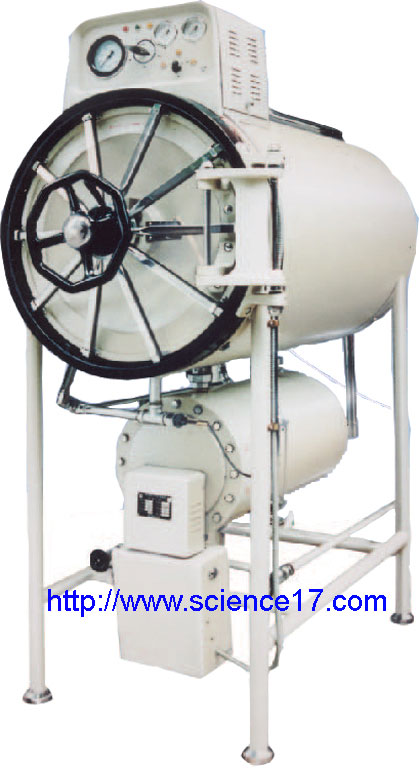

YXQ.WY.21.600 臥式圓型壓力蒸汽滅菌器(電加熱、單門)
YXQ.WY.21.600-S 臥式圓型壓力蒸汽滅菌器(電加熱、雙門)
YXQ.WY.22.600 臥式圓型壓力蒸汽滅菌器(蒸汽加熱、單門)
YXQ.WY.22.600-S 臥式圓型壓力蒸汽滅菌器(蒸汽加熱、雙門)
YXQ.WY.212.600 臥式圓型壓力蒸汽滅菌器(電蒸兩用、單門)
YXQ.WY.21.600 臥式圓型壓力蒸汽滅菌器(電加熱、單門、全不銹鋼)
產品注冊號
滬藥管械（準）字2002第2570144號
滬藥管械（準）字2002第2570573號
產品標準 Q/CYAB11-2002
概述
1、本滅菌器主體為圓形雙層夾套結構，內層選用優質不銹鋼，采用電加熱或外接蒸汽方式對物品進行濕熱滅菌，有利于滅菌物品的預熱干燥和連續操作。
2、本滅菌器總閥、溫度計、壓力表、壓力選擇等都集中安裝在儀表箱上，便于操作和觀察，并設有安全閥，快開門安全連鎖裝置，確保本器安全、有效運行。
3、本滅菌器適用于一般醫院、化工、食品、科研等單位，對手術器械、敷料、培養基等作消毒滅菌之用。
GENERAL
1、The main body is constructed by double layer jacket of which the internal layer is made of high-quality stainless steel. The sterilizer is supplied with main steam or steam independently heated by boiler.
2、The control panel is installed by a variety of components, such as steam control valve, pressure gauge, thermometer, as well as safety valve, interlocked door to ensure safe operation and reliable running.
3、The sterilizer is suitable for hospital, chemical industry and scientific research institutions to used.
4、The sterilizer is applied to instruments, dressings, so on to sterilize.
主要性能
|
|
YXQ.WY21.600(電加熱)
|
YXQ.WY22.600(直接蒸汽)
|
|
工作壓力 Working pressure
|
0.15MPa
|
0.15Mpa
|
|
工作溫度Working temperature
|
126℃
|
126℃
|
|
熱均勻度 Heat equilibrium
|
≤2℃
|
≤2℃
|
|
滅菌容積 Chamber capacity
|
0.25(0.6M×1M)
|
0.25(0.6M×1M)
|
|
外形尺寸 O.D. (L×W×H)
|
1.36m×0.765m×1.82m
|
1.36m×0.765m×1.82m
|
|
凈重 Net weight
|
450kg
|
400kg
|
|
能源供給 Steam supply
|
12kW/三相(3 phase 380V~50Hz)
|
Dg15mm (0.4~0.7Mpa)
|
|
控制電源 Power supply
|
100W/380V~50Hz
|
50W/單相(single phase)220V~50Hz
|
|
本器屬第一類壓力容器，嚴禁超壓、超溫使用。有關容器具體數據，詳見本公司該容器質量證明書。
The sterilizer is classified to Class I pressure container, Prohibit overheating or overpressure. Detailed specifications about the sterilizer can be referred to in the quality certifications.
|
|
